Features:
3-way Electronic Crossover
2/4/6 Channel Input
6-Channel / 5 Volt RCA Outputs (Front/Rear/Subwoofer)
Front/Rear/Subwoofer Lever Control
Subwoofer Equalizer and Boost Level Controls
Subwoofer Low-Pass Crossover Control
6/4/2 Channel RCA Inputs
6-Channel / 5 Volt RCA Outputs (Front/Rear/Subwoofer)
X20 Frequency Multiplier for Front Channel
Low-Pass Crossover
12dB per Octave Crossover Slope
Parallel Input Switch, Mixed In/Out Switch
Remote Subwoofer Level Control
Power on LED Indicator
What's in the Box:

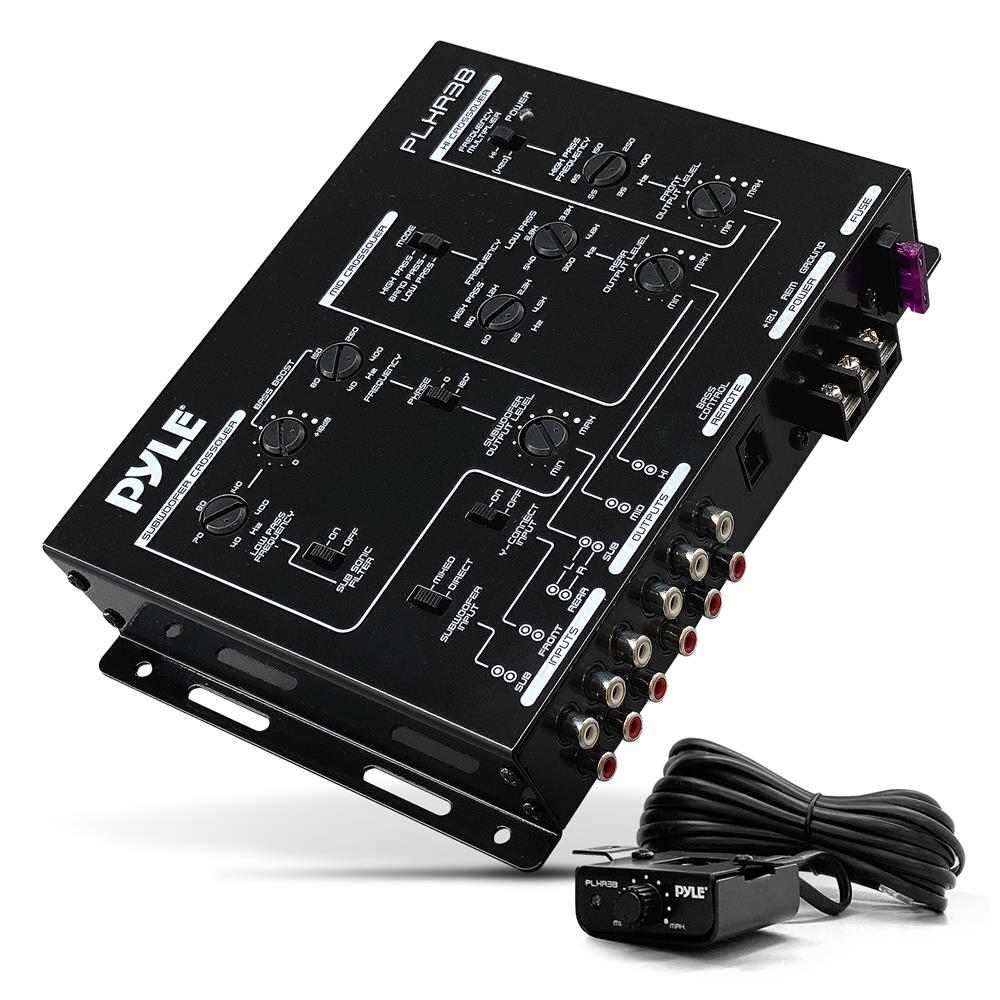

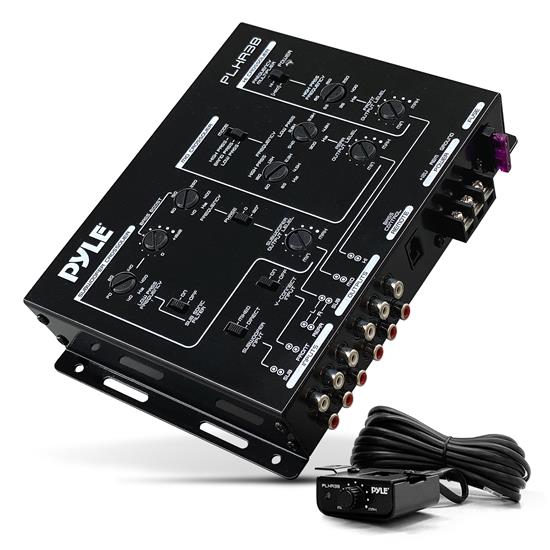

3-Way Electronic Crossover
4 Phillips-head Screws
Remote Unit
Remote Wire
3A Chip Fuse
Technical Specs:
Hi-Pass Crossover (Front): 35Hz-400Hz
Hi-Pass Crossover (Rear): 65Hz-4.5 KHz
Low-Pass Crossover (Rear): 300Hz-4.8 KHz
Variable Bass Frequency: 40Hz-400Hz
Boost Level: 0-18dB
Boost Frequency: 40Hz-400Hz
Phase Shift: 0 / 180
Subsonic: 25Hz
Distortion: 0.05% THD at 1V output level
S/N Ratio: 110dB
Separation: >60dB
Frequency Response: 10 HZ~ 50 KHZ
Voltage: 11V-15V
Product Dimensions (L x W x H): 10.4'' x 6.3'' x 1.5'' -inches
Sold as: 1Weight: 1.5 lbs.
|
