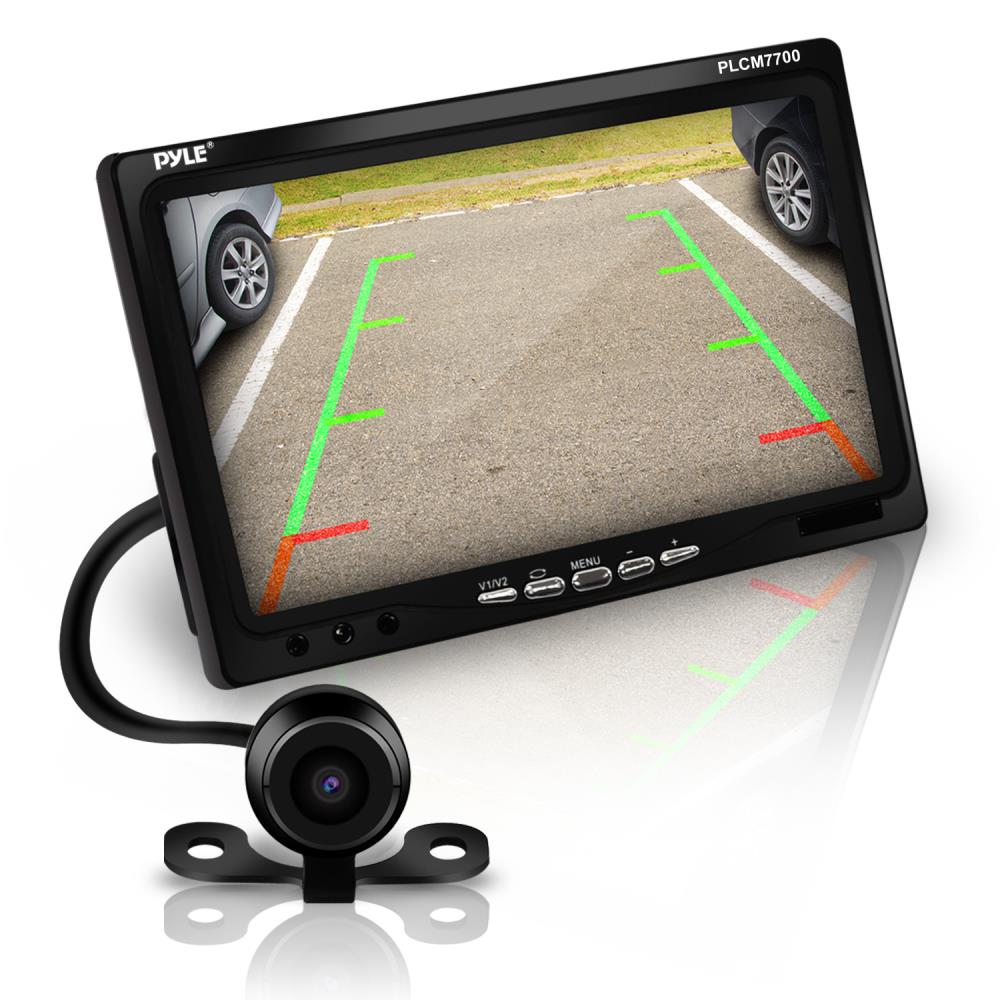

Rear View Backup Camera and Monitor System with 7'' LCD Display Screen, Waterproof Night Vision Camera, Distance Scale Lines, Parking/Reverse Assist
Model PLCM7700
Brand Pyle
Category Rearview Backup Cameras - Dash Cams
MSRP $75.99
Warranty 1 Year

Details

  System Features:
  • Universal Camera and Monitor Parking Assist System
  • Compatible with a Wide Range of Automobiles
  • Backup and Reverse Video System Safety
  • Includes All Necessary Cables and Wiring Accessories

    Monitor:
  • 7.0-Inch TFT-LCD Screen Monitor
  • 16:9 Wide Screen
  • Touch Button Controls
  • Pixels: 646 x 540
  • 420 TV Line Resolution
  • Universal LCD Mount: Stand & Suction Cup Included
  • PAL/NTSC System
  • HD High Resolution Display
  • Two video inputs
  • Power supply: DC12V
  • Dimensions (W x H x D): 7.60'' x 5.24'' x 0.98''

    Camera:
  • Marine Grade Waterproof IP68 Rating
  • Night Vision Low Light Capability
  • Built-in Distance Scale Lines
  • Universal Mount: Choose Flush or Hanging Mount
  • 170 Degree Wide View Angle Lens
  • Auto Image Adjustment & White Balance
  • Video Output: 1.0Vpp-75Ohm
  • Min. Illumination: 1.0 Lux Light
  • Power Supply: DC 12 Volt
  • Dimensions (L x W x H): 0.9'' x 0.67'' x 0.67''
    •
    Similar Products

    Product Description
    Add an extra line of safety and become a better driver with this commercial grade backup camera and monitor system. The Pyle PLCM770 custom installation system will allow you to mount your camera and monitor exactly where you need it. The 7-inch monitor mounts to your dashboard or windshield for optimal viewing. Preferred mounting location for the camera is just above the rear license plate (choose from flush mount or bracket mount options) -- or you can also mount the camera in the front of your vehicle. The small and durable camera and housing installs easy and will provide extra safety when operating your automobile. Steer clear of bicyclists, watch out for pedestrians and skill your way into those tight parking spots like never before. Also useful whenever you reverse or when visibility is limited. Configure the system to work with an existing in-dash monitor or use the included monitor - comes with RCA-compatible video inputs. The color camera also displays distance scale lines on your monitor clearly marking the distance from objects. Drive safer and smarter with the Pyle PLCM7700 Backup Rear View Camera and Monitor System.
    Pyle - PLCM7700 , On the Road , Rearview Backup Cameras - Dash Cams , Rear View Backup Camera and Monitor System with 7 Pyle - PLCM7700 , On the Road , Rearview Backup Cameras - Dash Cams , Rear View Backup Camera and Monitor System with 7 Pyle - PLCM7700 , On the Road , Rearview Backup Cameras - Dash Cams , Rear View Backup Camera and Monitor System with 7 Pyle - PLCM7700 , On the Road , Rearview Backup Cameras - Dash Cams , Rear View Backup Camera and Monitor System with 7 Pyle - PLCM7700 , On the Road , Rearview Backup Cameras - Dash Cams , Rear View Backup Camera and Monitor System with 7 Pyle - PLCM7700 , On the Road , Rearview Backup Cameras - Dash Cams , Rear View Backup Camera and Monitor System with 7 Pyle - PLCM7700 , On the Road , Rearview Backup Cameras - Dash Cams , Rear View Backup Camera and Monitor System with 7
    Product Review
     Name : Rick 4/26/2017 10:32:02 PM
       Review : Got this for My Wife's Truck, How I wired it .
     Name : Juan 11/29/2016 3:23:43 PM
       Review : Solicito la revición de la garantía extendida . Gracias Saludos
     Name : Tom 11/16/2016 6:07:56 PM
       Review : Good size monitor, nice picture. Use red wire in long cable to connect backup light to monitor power and green wire--this will turn on monitor and camera together.
     Name : Farid 8/22/2016 11:03:29 PM
       Review : great backup camera for the price but no REAL installation instructions
     Name : Billy 6/25/2015 1:25:40 AM
       Review : Needed help on understanding where two wires were not show instructions.
     Name : Charles 6/15/2015 6:57:40 PM
       Review : Wait until my questions are answered.
     Name : Rosetta 1/29/2015 2:51:46 PM
       Review : Love it.... this is better than the other backup camera I purchase, especially the 7-inch monitor and the picture is very clear
     Name : Thomas 1/23/2015 12:55:36 PM
       Review : Very little information on set-up or manuals.
     Name : Mario 1/22/2015 1:59:14 PM
       Review : I really love this whole system. Very easy to install and use. The only problem I had was with the suction cup mount the tightener "nut" stripped very easily so I had to repair that otherwise everything is great. I can highly recommend this just go easy when tightening the suction cup nut.
     Name : john 1/13/2015 7:12:21 PM
       Review : I like the large color screen,night vision camera,andtwo video inputs.i hope to be able to purchase two more camera's
     Name : Wayne 1/13/2015 11:23:28 AM
       Review : Quality product for a great price. Online video provides for an easy installation.
     Name : frank 1/8/2015 11:57:29 AM
       Review : Received product very quickly even though it was on back-order. very pleased with product so far
     Name : BENNIE 12/20/2014 9:01:55 AM
       Review : Great product
     Name : RONALD 11/21/2014 10:18:13 AM
       Review : LOOKS GREAT. COULD USE A FEW MORE DETAILS IN INSTRUCTIONS. AM CURRENTLY INSTALLING IT.
     Name : mich 11/17/2014 9:30:57 PM
       Review : this a great product, faily easy to install
     Name : ted 10/25/2014 8:04:55 AM
       Review : now I can back up safely in blind spots
     Name : Dan 10/14/2014 4:28:51 PM
       Review : Installed with simple tools and works as advertised. Camera provides a somewhat fuzzy image on the monitor, but we're not watching movies! Manual is very Spartan on information .
     Name : daniel 10/1/2014 9:38:13 PM
       Review : nice big screen can see very well
     Name : George 9/23/2014 5:46:01 PM
       Review : Works well, very well as a mater of fact. Relativly simple install, very happy.
     Name : Pierre 8/25/2014 4:37:18 PM
       Review : Thos was packaged very safe and nicely no overloads of peanuts, just the right amount of protection. the product arrived in near perfect condition.
     Name : Ralph 8/23/2014 1:26:01 PM
       Review : The camera has very good color and clarity and very easy to install
     Name : James 8/15/2014 3:48:30 PM
       Review : Great....only wish it gad a manual with the shipment,
     Name : James 7/29/2014 12:23:24 PM
       Review : Great product, the 7 in. monitor is very easy to see and interpret.
     Name : ED 6/27/2014 9:45:26 AM
       Review : Very easy to install & Works great
     Name : coy 5/7/2014 8:30:48 PM
       Review : The PLCM7700 monitor and camera kit I ordered came with everything I needed to install it in my GMC pickup. The only problem I had was mounting the camera in the license plate area. I solved that problem by fabricating a bracket to mount the camera. The rest of the instillation went easy and the system works great. that's why I give it 4 stars.
     Name : Dave 4/29/2014 2:47:13 PM
       Review : Has a wonderfully clear screen 7" and it has a very wide view of the back. Better than I thought it would be..
     Name : Joe 2/10/2014 9:30:14 PM
       Review : I like the unit, it was easy to install, works great.
     Name : David 1/26/2014 3:47:54 PM
       Review : Well constructed, good quality product. Furnished with all necessary parts.
     Name : Robert 12/27/2013 11:37:08 AM
       Review : Wonderful gift. Will comment after it is installed.
     Name : J 12/8/2013 11:09:27 AM
       Review : The unit was extremely easy to install and works well
     Name : Edward 11/22/2013 6:44:38 PM
       Review : Monitor looks great. Very sturdy. Can not wait to get it up and running.
     Name : William 11/7/2013 9:41:05 PM
       Review : Very nice product for the price.
     Name : gerald 8/29/2013 1:26:34 PM
       Review : Great product easy hook up
     Name : Peter 7/12/2013 8:28:58 PM
       Review : excellent clarity
     Name : Michael 7/6/2013 8:08:00 AM
       Review : After 3 months my PLCM 7700 quit working..... warranty expires and so does the product
     Name : Richard 6/23/2013 1:21:54 PM
       Review : Good color and picture resolution for the purpose. Good range of adjustment for picture quality (color, brightness, etc.). Wish the built-in distance scale brightness could be adjusted down a bit. Poor wiring directions, Pyle only supplied camera end diagram, nothing for the monitor end diagram! Thanks to the tips from other reviewers, the installation is pretty straight forward if you have basic auto wiring knowledge. The extra small wire size used on the camera harness makes it a real pain to connect to the ground and a 12 volt source.
     Name : Scott 4/2/2013 11:51:48 PM
       Review : Hooks up very easy
     Name : Robert 4/1/2013 4:55:35 PM
       Review : No installation instructions other than a wiring diagram.
     Name : Brett 1/28/2013 2:40:25 PM
       Review : I like the large screen and the scale. I also like that it has a second input. Took a little over an hour to install. Works great for my needs. Thanks, Brett
     Name : David 1/5/2013 12:01:47 PM
       Review : Equipment works better than I expected. The installation manual is grossly inadequate.
     Name : terry 11/9/2012 6:42:02 PM
       Review : easy installation.pleanty of monitor installation options.
     Name : Michael 10/4/2012 6:01:11 PM
       Review : The product arrived promptly and it is simple to put together. It will help keep people safe on the highways.
     Name : Murray 10/2/2012 2:26:34 PM
       Review : Installed easily, and beautiful picture quality
     Name : Eddie 9/3/2012 11:38:32 AM
       Review : Easy assembly and hook up, great picture, not HD but very good considering. Works very well at night.
     Name : Willard 7/25/2012 10:09:34 AM
       Review : Camera and monitor has excellent color and clarity. Wide viewing area.
     Name : Fred 6/29/2012 1:45:24 PM
       Review : Great product,need better instrutions on installation
     Name : Silvio 6/24/2012 1:08:46 PM
       Review : Nice unit but lack of any instructions or customer support really hurt confidence.
     Name : Janelle 6/7/2012 10:46:16 AM
       Review : Love this camera. It has a great picture day or night and the 7 inch screen allows you to see everything. The only complaint is that the remote control does not work
     Name : tony 6/6/2012 7:03:39 PM
       Review : As nearly every other reviewer on here-I was really happy with the product, but couldn't imagine how the 2 inches at the bottom of the spec manual, could pass as installation instructions! The drawing doesn't match the components that I have, and only served to confuse the average consumer. I had no problem with the installation, thanks in large-part to the other reviews that I found online. Price couldn't be beat. Only hitch I had was that in a 2004 Sienna, there was no location that this could be mounted, where it wasn't blocking the view out of the windshield. I finally had to drill holes in my dash, to the left of the glovebox...Toyota offers NO flat mounting surfaces in this vehicle. Overall this is a fantastic purchase for the money.
     Name : sareem 1/21/2012 8:20:34 PM
       Review : It is a very nice product and makes backing the car quite comfortable. pros: *excellent camera with 170 degree wide angle view. It must be attached near the rear centre of the car as it helps to align the distance scale lines well. *the camera is weather proof with IP rating: 68 and must be aligned well before drilling any hole in the vehicle body. *the monitor is big and serves the purpose well. *functions well even in low light conditions. *monitor can be attached to additional device. *comes with one year warranty. *excellent customer service. cons: *instructions to attach are not detailed.
     Name : Don 1/15/2012 8:40:56 AM
       Review : The installation was simple enough but, and this is a big but for people who are not aquainted with wiring, there are no instructions showing how to attach the monitor to power---NONE---ZIP---NADA!!!
     Name : Darrell 1/13/2012 10:18:09 AM
       Review : this camera& monitor have great picture. Quality is comparable to high priced units. installation was easy,and cost was very affordable. I love the 7 inch monitor
