Features:

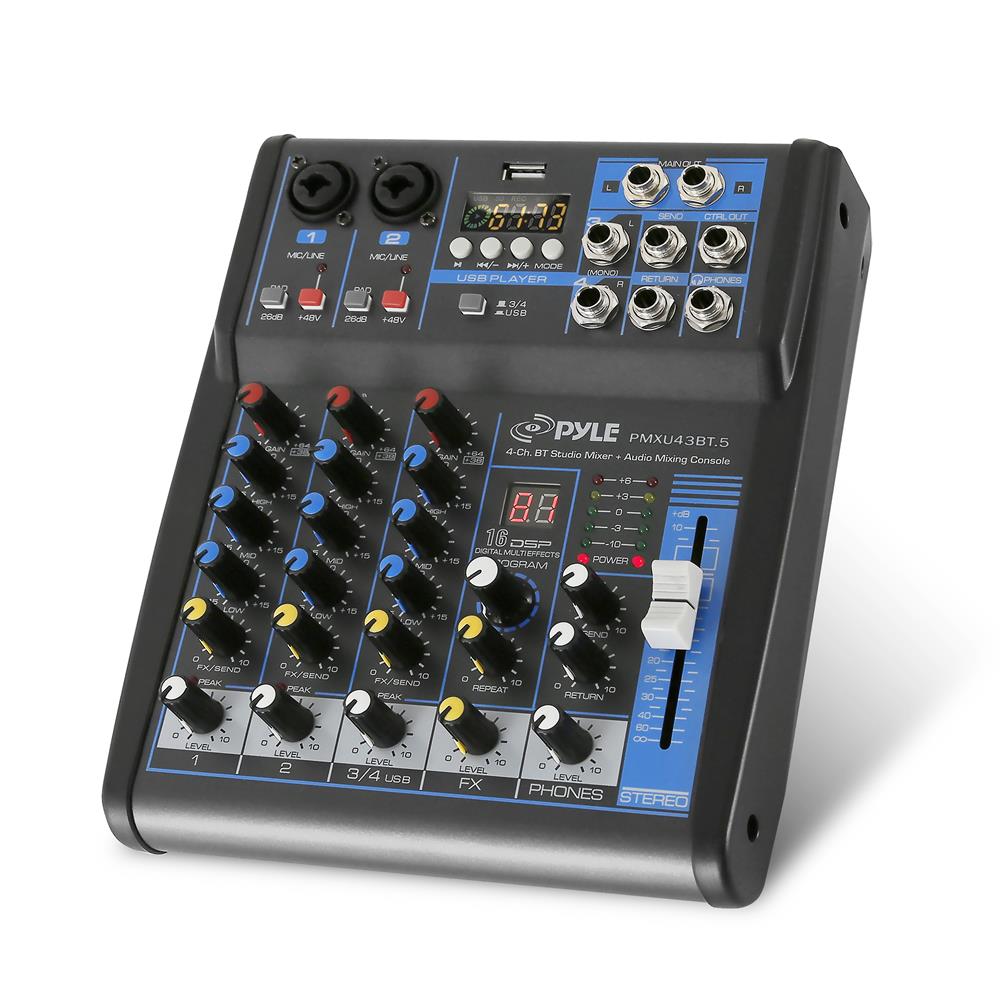

DJ & Studio Console Mixer System
Multi 4-Channel Audio Source Mixing
Built-in Bluetooth Wireless Receiver
FX (Analog Effects) & 16 Bit DSP processor
Direct-to-Computer Connect & Sound Record Ability
LCD Digital Display & Front Panel Control Center
Rotary Adjustment Knobs & LED Indicator Lights
MP3 Digital Audio File Compatibility
USB Interface: MP3 Flash Drive Reader/Computer Connection
Connect & Stream Audio from External Devices
(2) 1/4’’ (L/R) MAIN Outputs
(2) XLR/14’’ Combo Audio LINE/Microphone Inputs
1/4’’ Mono + Stereo Inputs
1/4’’ Send + Return Inputs
1/4’’ Headphone Jack
Stereo Level Fader/Slider
Output Signal Level Indication
BUS Audio Control, Sound Routing
PAD Channel Source Input Switch
Independent Channel Input Audio Configuration
Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
+48V Phantom Power Control
Power ON/OFF Switch
Used for Professional Studio Applications & On-Stage Performances
What’s in the Box:
Bluetooth Studio Mixer
Power Adapter Cable, 4-Pin
Wireless Bluetooth Connectivity:
Hassle-Free Audio Streaming Ability
Works with All of Today’s Latest Devices
(Smartphones, Tablets, Laptops, Computers, etc.)
Bluetooth Network Name: ‘KT-08UP’
Bluetooth Version: 4.0
Wireless Range: 15’+ ft.
Technical Specs:
Input Mixer Channels: 4-Ch. (+ FX/Headphones)
Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
Channel GAIN Adjustment: +20/+64 (-6/+38)
HIGH/MID/LOW Adjustment: -15/+15dB
Stereo Output Level Meter: 5-Segment (+6, +3, 0, -3, -10dB)
PAD Input Channel Adjustment: 26dB
Peak CLIP Level: < 3dB
Phantom Power Voltage: +48V
Power Supply: 100-240V (+/-15V DC Power Adapter)
Digital Audio File Compatibility File-Types: MP3, WAV
Dimensions (L x W x H): 9.3’’ x 7.5’’ x 2.6’’ Sold as: 1Weight: 3.95 lbs.
|
