Features:

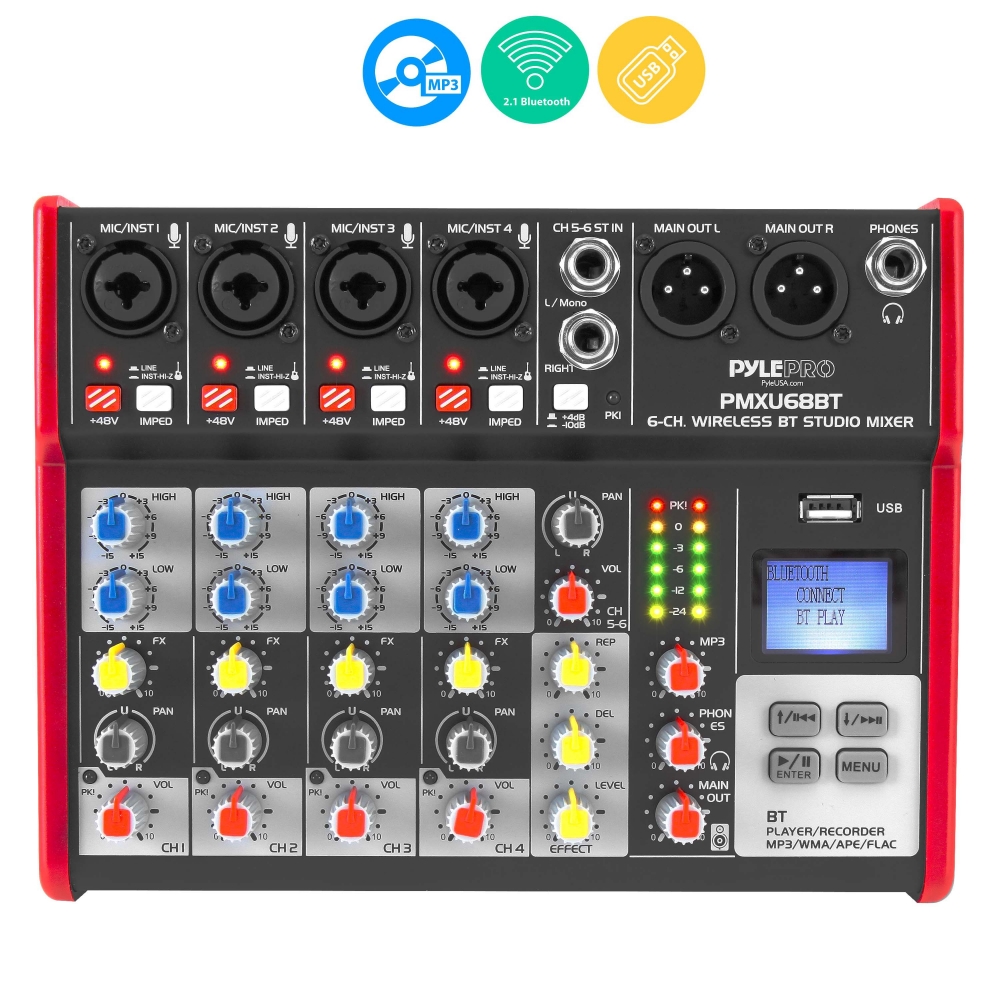

Digital Studio DJ Mixer System
Pro Audio Console Controller
Multi-Channel Sound Source Mixing
Microphone, Instrument / Guitar / Keyboard Mix Ability
Built-in Bluetooth Wireless Streaming Receiver
USB Interface: MP3 Flash Drive Reader/Computer Connection
LCD Digital Display & Front Panel Control Center
ID3 Tag Readout: Display Song Title / Artist
Connect & Stream Audio from External Devices
MP3 Digital Audio File Compatibility
(2) XLR 3-Pin (L/R) MAIN Outputs
(4) XLR/14’’ Combo Audio LINE/Microphone Inputs
1/4’’ (6.35mm) Mono / Stereo Inputs
1/4’’ (6.35mm) Headphone Jack
Output Signal Level Indication
BUS Audio Control, Sound Routing
Rotary Adjustment Knobs & LED Indicator Lights
Independent Channel Input Audio Configuration
Gain, High, Low, FX/Send, Pan Tone Audio Adjustment
+48V Phantom Power Control
Power ON/OFF Switch
Used for Professional DJ Studio Applications, Audio Recording, On-Stage Performances
What’s in the Box:
Bluetooth Studio Mixer
Wall Power Adapter
Wireless Bluetooth Connectivity:
Hassle-Free Audio Streaming Ability
Works with All of Today’s Latest Devices
(Smartphones, Tablets, Laptops, Computers, etc.)
Bluetooth Network Name: ‘PYLEPRO MIXER’
Bluetooth Version: 2.1
Wireless Range: Up to 33’+ ft.
Technical Specs:
Audio Mixer Type: 6-Channel
CH 1/2 MIC/LINE: Gain: -14+40 dB;
2 Band Graphic EQ: 80Hz/12KHz, +15dB
Audio Level Meter: 2 x 6 Point LED Display
Max Output Level: 3 Vrms
System Gain: -14 +40dB
Frequency Response: +0.5 dB, 20Hz-20kHz
Dynamic Range: 102 dB
THD+N @ 1kHz: <0.03%
Stereo Crosstalk: 92 dB
USB Digital Audio File Compatibility File-Types: MP3, WMA, APE, FLAC
Maximum USB Flash Support: Up to 64GB
Phantom Power Voltage: +48V
Power Consumption: Max: 5W
Power Supply: 120/240V, 5V/1A
Total Unit Dimensions (L x W x H): 8.70’’ x 2.59’’ x 6.50’’ -inches
Sold as: 1Weight: 3.49 lbs.
|
