Features:

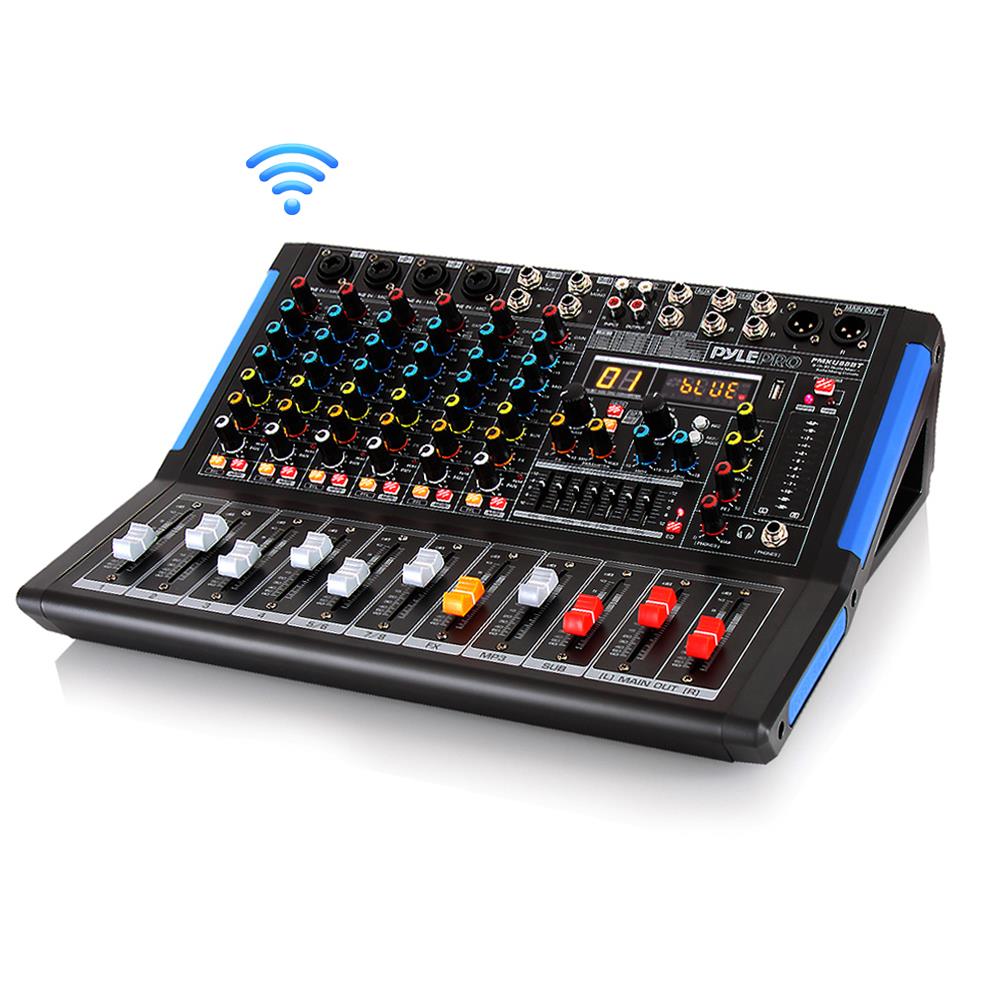

DJ & Studio Console Mixer System
Multi 8-Channel Audio Source Mixing
Built-in Bluetooth Wireless Receiver
FX (Analog Effects) & 16 Bit DSP processor
Direct-to-Computer Connect & Sound Record Ability
7-Band EQ
32-Bit Dual Engine DSP
24-Bit ADC DAC Converter
FX Configuration Adjustment Controls
Rotary Adjustment Knobs & LED Indicator Lights
MP3 Digital Audio File Compatibility
USB Flash Drive Reader
USB Port for Desktop Connection
Connect & Stream Audio from External Devices
(2) 1/4’’ (L/R) MAIN Outputs
(4) XLR/14’’ Combo Audio LINE/Microphone Inputs
(2) Pair RCA (L/R) Inputs
(2) Pair 1/4’’ Mono + Stereo Inputs
1/4’’ Send + Return Inputs
1/4’’ Headphone Jack
Stereo Level Fader/Slider
Output Signal Level Indication
BUS Audio Control, Sound Routing
PAD Channel Source Input Switch
Independent Channel Input Audio Configuration
Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
+48V Phantom Power Control
Power ON/OFF Switch
Used for Professional Studio Applications & On-Stage Performances
What’s in the Box:
Bluetooth Studio Mixer
Power Adapter Cable, 3-Pin
Wireless Bluetooth Connectivity:
Hassle-Free Audio Streaming Ability
Works with All of Today’s Latest Devices
(Smartphones, Tablets, Laptops, Computers, etc.)
Bluetooth Network Name: ‘KG-08A’
Bluetooth Version: 2.0
Wireless Range: 15+’ ft
Technical Specs:
Input Mixer Channels: 8-Ch. (+ FX/Headphones)
Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
Input Frequency Response: 20Hz-20kHz, +/-3dB
Input Distortion: 0.03%, 1kHz/150mV Input
Channel GAIN Adjustment: +20/+64 (-6/+38)
HIGH Gain: +/-15 dB, 12kHz Frequency Shelving
MID Gain: +/-15 dB, 2.5kHz Frequency Shelving
LOW Gain: +/-15 dB, 80kHz Frequency Shelving
HIGH/MID/LOW Adjustment: -15/+15dB
Stereo Output Level Meter: 12-Segment (-30, -20, -10, -7, -4, -2, 0, +2, +4, +7, +10, CLIP)
PAD Input Channel Adjustment: 26dB
Peak CLIP Level: < 3dB
Digital Audio File Compatibility File-Types: MP3, MP4, WMA, WAV
Phantom Power Voltage: +48V
Power Supply: 100/240V (+/-15V DC Power Adapter)
Dimensions (L x W x H): 16.3’’ x 12.5’’ x 3.66’’ -inches
Sold as: 1Weight: 11.02 lbs.
|
