12-Channel 2-Bus Console Mixer
|
|
|
|
|
|
|
Details
|
|
4 Mono Input Channels (CH 1, 2, 3, 4)
4 Stereo Input Channels (CH 5/6, 7/8, 9/10, 11/12)
Master & Phones/Control Room Level Controls
EFX Send Level Control
Stereo Headphones Jack
Main & Control Room Out Jacks 1/4''
Mono Effects Send 1/4''
Effects Send Routable to Control Room
Stereo Tape In & Out Jacks RCA
Tape Input Routing to Control Room and/or Mix
5 Segment Dual LED Level Meters
Mono Channel Section
Gain, Pan, Aux Send & Level Controls
3 Band EQ
Peak Indicator
+48V Phantom Power Switchable
XLR Balanced Mic Input
1/4'' TRS Balanced/Unbalanced Line Input Stereo Channel Section
3 Band EQ
Balance, Aux Send & Level Controls
1/4'' TRS Balanced/Unbalanced Line Inputs
AC Adapter 110V
Dimensions: 10.6''W x 1.6''H x 8.9''DSold as: UnitWeight: 5.57 lbs.
|
|
|
|
|
|
|
|
|
|
|
Similar Products
|
|
|
|
|
|
|
|
|
|
|
|

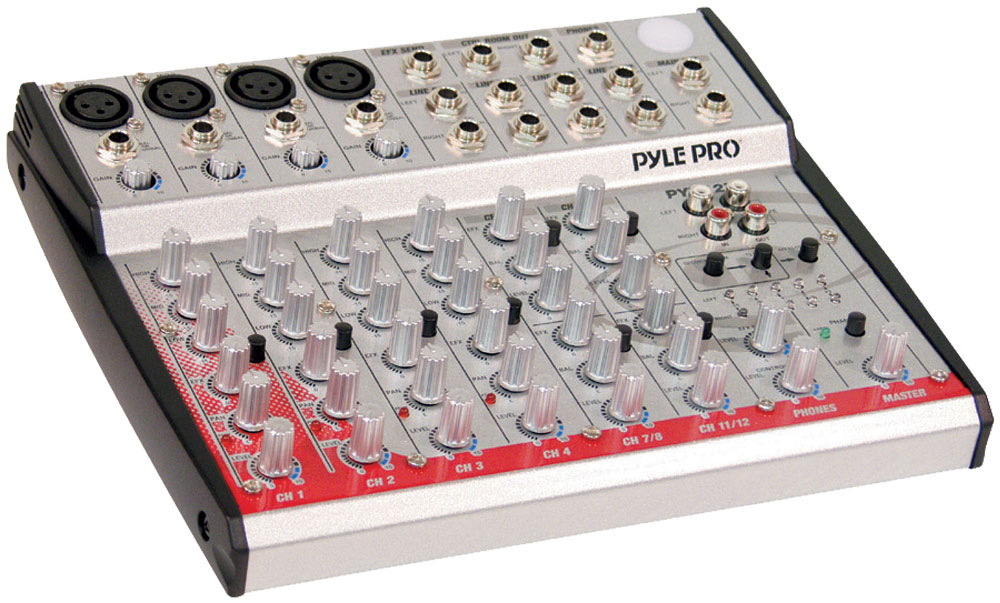

This 12 channel (4 mono, 4 stereo) console mixer is equipped with everything you need to deliver quality mixes at the studio, club, party, or anywhere else. Each mono input takes either balanced XLR mic or unbalanced ¼' jack. A phantom-power switch provides +48V across all microphone inputs for condenser mics. The rotary faders provide the precise control you need for subtle mixing. A dedicated 3-band EQ, with HIGH (10 kHz), MID (1 kHz) and LOW (100 Hz) on each input lets you shape the sound to your exact specifications. There is an EFX out ¼' jack for external effects. Outputs include two ¼' jacks for main output, stereo RCA for recording, two ¼' jacks for studio monitors, and a ¼' headphone jack, so you can monitor your mix before unleashing it. The two-channel 5-dot LED meters indicate your levels, so you'll never distort or clip your inputs. The PYD1270 runs on 110 V.
|
