Features:
Includes 20A PWM Controller with LCD Screen
Portable and Easy Set-Up
Sleek Design for Aesthetic Quality
Grade A Mono Solar Cells
Higher Module Conversion Efficiency
Produces 600-1200Wh a day
Generates 10.8 amp Power
Charges 24 Volt Battery
Anodized Aluminum Frame and Tempered Glass
With folding Mounting Stand & Convenient for Installation
Easy to Set Up and Suites Variety Using Conditions
Foam Box for Safe Transport and Easy Storage
Dust Tight and Waterproof with IP67 Rating
Set Up in Just 5 Minutes for Solar Starters
Used for Marine, Dry Camp, RVs, and Other Off-grid Applications
What's in the Box:

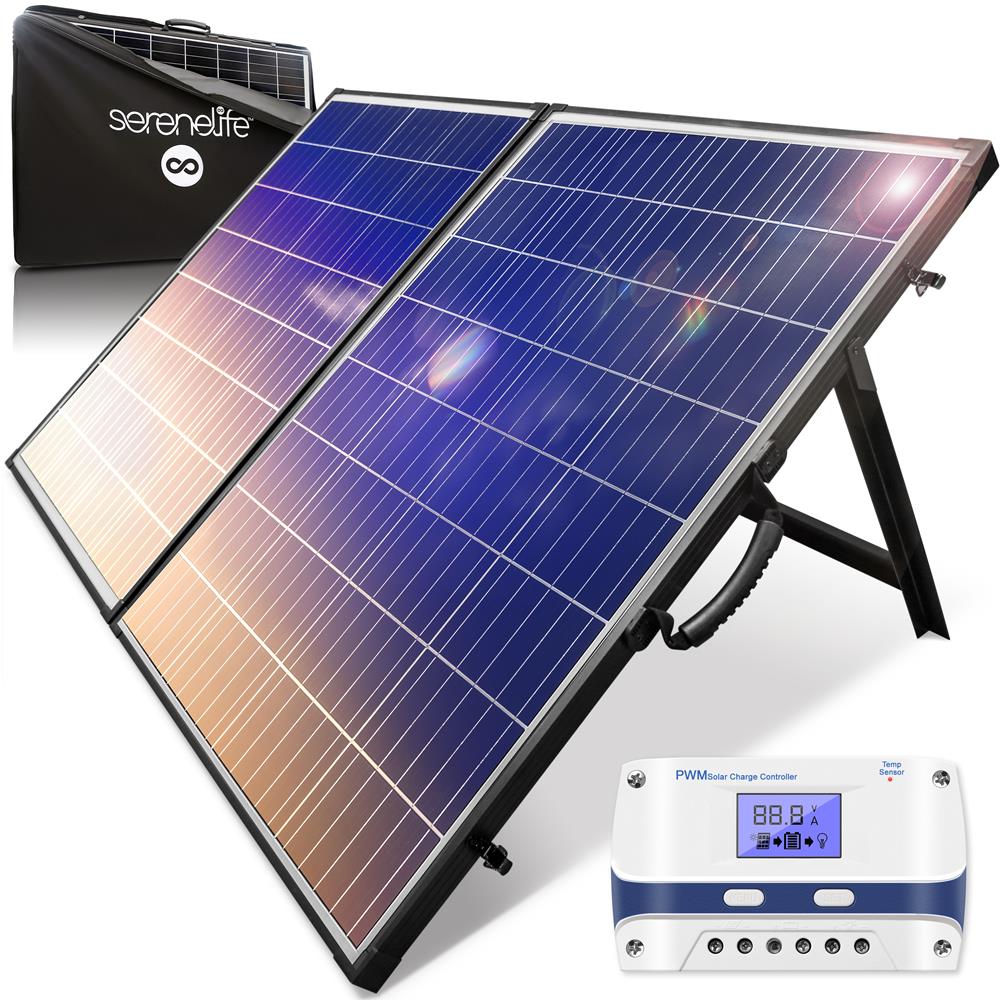

200W Solar Brief Case
3 ft. (1m) Cable with SAE to Anderson Connector
3 ft. (1m) Cable with SAE to DC 8055 Male Connector
10 ft. (3m) Cable with Bare Wire to Alligator Connector
20A PWM Controller: 12V/24V
Carry bag
Technical Specs:
Power Supply: 200W
Short-Circuit Current (Isc):11.2A
Open-Circuit Voltage (Voc): 22.8V
Maximum Power Voltage (Vmp): 18.6V
Maximum Power Current (Imp): 10.8A
Maximum System Voltage: 1000VDC
Tolerance of PMax: ±3%
Series Fuse Rating: 15A
Operating Temperature: Controller and Inverter: -20℃-50℃
Solar Panel: -40℃-85℃
Controller Voltage: 12V/24V
Max. Input: < 50V
USB Output: 5V/2A
Standby Current: < 12mA
Type of Connector: SAE Connector
Cell Type: High-Efficiency Monocrystalline
Battery Type: 12V Lead-acid and Lithium-ion Batteries (Battery Not Included in the System)
Folded Dimension: 36.5'' x 28.3'' x 2.6'' -inches
Unfolded Dimensions: 55.2'' x 36.5'' x 1.3'' –inchesSold as: 1Weight: 45.4 lbs.
|
