Features:
Includes 30A PWM Controller with LCD Screen
Portable and Easy Set-Up
Sleek Design for Aesthetic Quality
Grade A Mono Solar Cells
Higher Module Conversion Efficiency
Optimally Generate about 67Ah in 12V Battery or 800WH per Day
Anodized Aluminum Frame to Protect Solar Cells & Convenient for Installation
Foam Box for Safe Transport and Easy Storage
Dust Tight and Waterproof with IP67 Rating
Set Up in Just 5 Minutes for Solar Starters
Used for Marine, Dry Camp, RVs, and Other Off-grid Applications

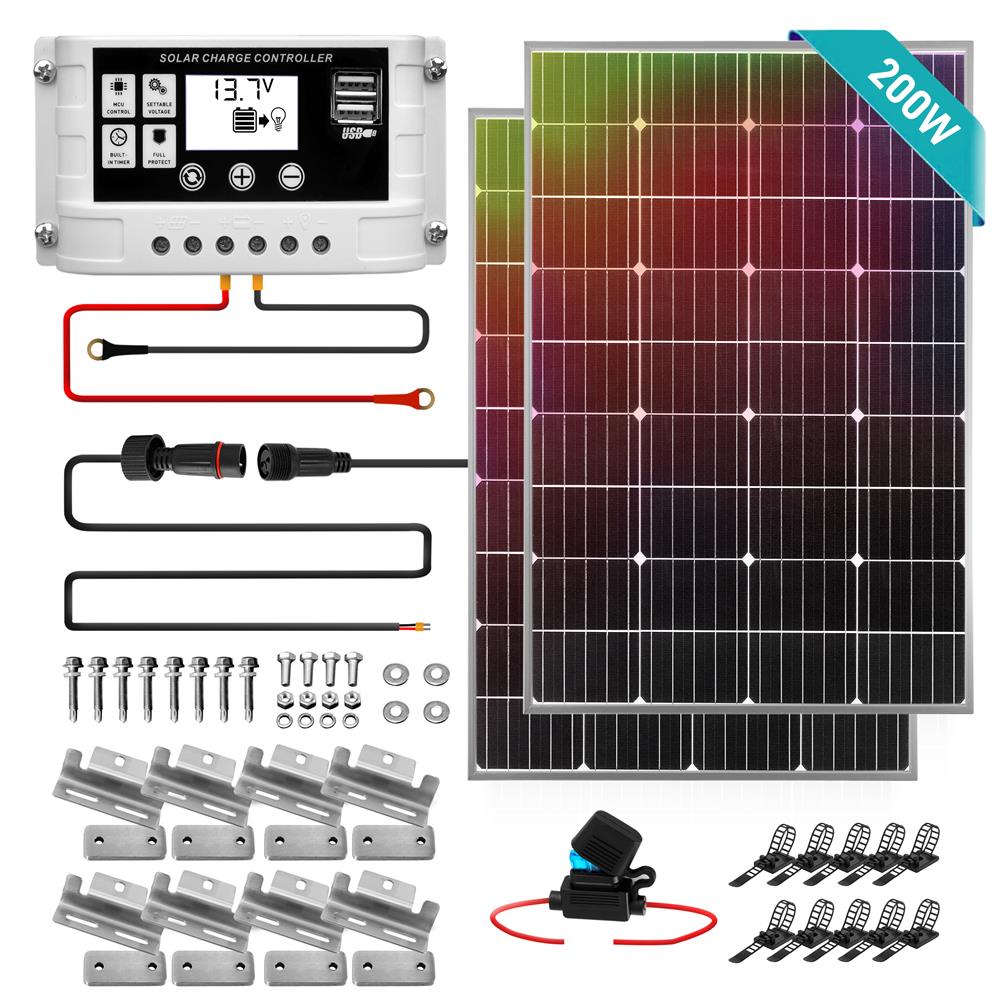

What's in the Box:
(2) 100W Mono Solar Panel
(2) Sets of Mounting Brackets
(10) Wire Fixers
3 ft. 11 AWG Cable Set (Connected already with Solar Panel Junction Box)
20 ft. 11 AWG Sheathed Cable Set with Aviation Connector
8 ft. 11 AWG PV Cable Set with Ring Terminal
15A Fuse
30A PWM Controller
Technical Specs:
Power Supply: 100W (Each)
Fuse: 15A
Short-Circuit Current (Isc):5.85A
Open-Circuit Voltage (Voc): 23.1V
Maximum Power Voltage (Vmp): 18.8V
Maximum System Voltage: 1000V
Tolerance of PMax: ±3%
Series Fuse Rating: 15A
Maximum Power Current (Imp): 5.32A
Battery Type: 12V Lead-acid and Lithium-ion Batteries (Battery Not Included in the System)
Cell Type: High-Efficiency Monocrystalline
Operating Temperature: Controller and Inverter: -20℃-50℃
Solar Panel: -40℃-85℃
Controller Voltage: 12V/24V
Max. Input: < 50V
USB Output: 5V/2A
Standby Current: < 12mA
Type of Connector: Aviation Connector
Wire/Cable Length: 35.4 -inch
Product Dimension: 35.4'' x 26.4'' x 1.4'' -inchesSold as: 1Weight: 41.84 lbs.
|
