Features:
Includes 30A PWM Controller with LCD Screen
Portable and Easy Set-Up
Sleek Design for Aesthetic Quality
Grade A Mono Solar Cells
Higher Module Conversion Efficiency
Each Panel Produces 300-600Wh a day
Generates 5.3 amp Power
Charges 12/24 Volt Battery
Anodized Aluminum Frame to Protect Solar Cells & Convenient for Installation
Pre-drilled Holes, Compatible with Common Ground Mounts
Foam Box for Safe Transport and Easy Storage
Dust Tight and Waterproof with IP67 Rating
Set Up in Just 5 Minutes for Solar Starters
Used for Marine, Dry Camp, RVs, and Other Off-grid Applications

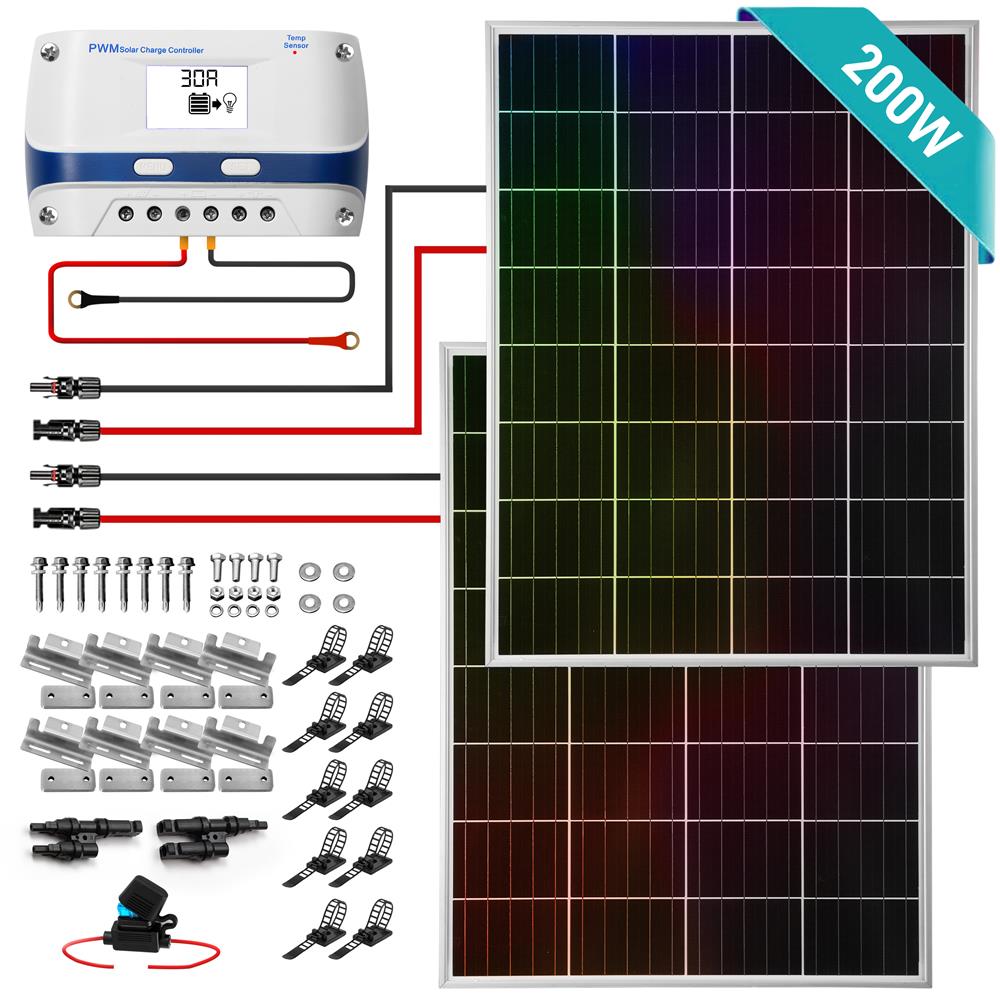

What's in the Box:
(2) 100W Mono Solar Panel
30A Solar charge controller (White)
(2) Sets of Mounting hardware / Z-brackets
20' Solar Extension Cable (Red), Pre-assembled Female Connector (between solar panel to controller)
20' Solar Extension Cable (Black), Pre-assembled Male Connector (between solar panel to controller)
8' Extension Cable (Red), Pre-assembled Battery Lug (between controller to battery)
8' Extension Cable (Black), Pre-assembled Battery Lug (between controller to battery)
15A Fuse and Replacement
(10) Wire Fixers
A Pair of MC4 Connectors
Technical Specs:
Power Supply: 100W x 2
Fuse: 15A
Short-Circuit Current (Isc):5.85A
Open-Circuit Voltage (Voc): 23.1V
Maximum Power Voltage (Vmp): 18V
Maximum System Voltage: 1000V
Tolerance of PMax: ±3%
Series Fuse Rating: 15A
Maximum Power Current (Imp): 5.32A
Battery Type: 12V Lead-acid and Lithium-ion Batteries (Battery Not Included in the System)
Cell Type: High-Efficiency Monocrystalline
Operating Temperature: Controller and Inverter: -20℃-50℃
Solar Panel: -40℃-85℃
Controller Voltage: 12V/24V
Max. Input: < 50V
USB Output: 5V/2A
Standby Current: < 12mA
Type of Connector: MC4 Connector
Wire/Cable Length: 35.4 -inch
Product Dimension: 36'' x 26.2'' x 1.4'' -inches
Sold as: 1Weight: 43.6 lbs.
|
