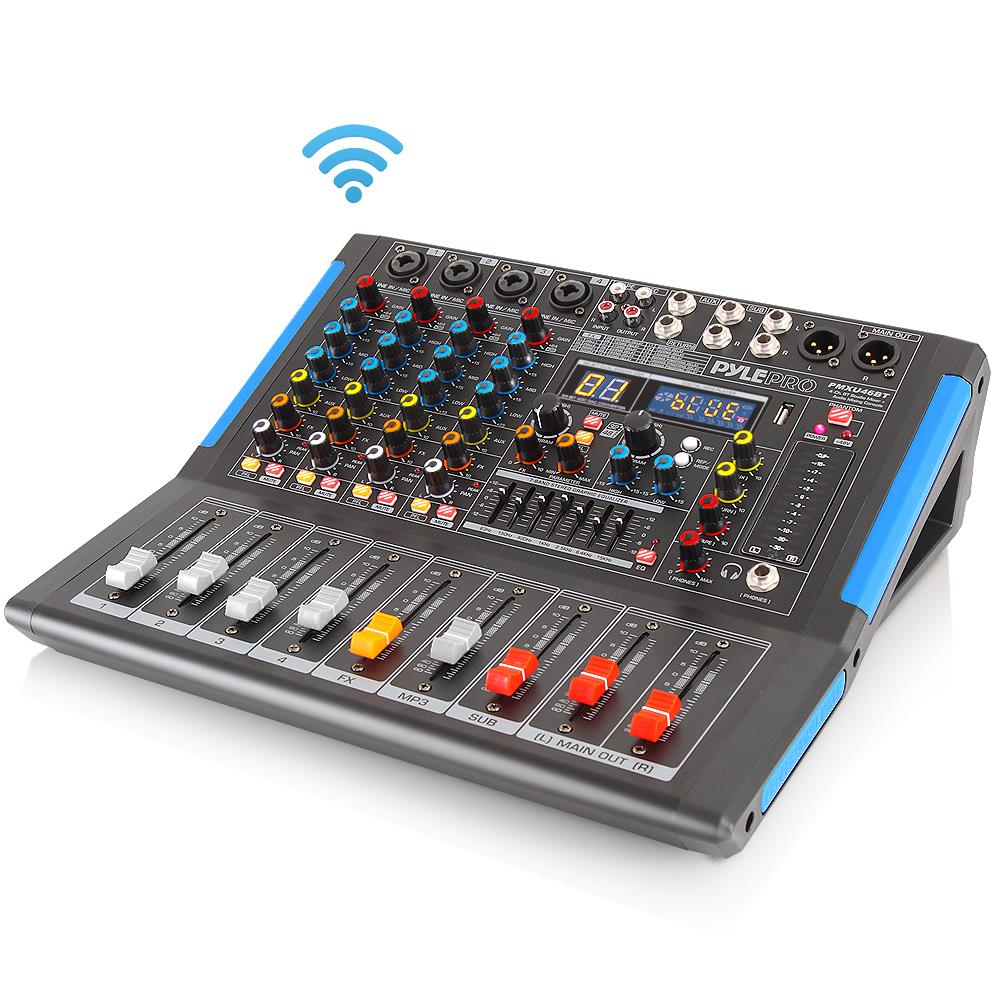

4-Ch. Bluetooth Studio Mixer - DJ Controller Audio Mixing Console System
Model PMXU46BT
Brand Pyle
Category Mixers - DJ Controllers
MSRP $204.99
Warranty 1 Year

Details

  Features:
  • DJ & Studio Console Mixer System
  • Multi 4-Channel Audio Source Mixing
  • Built-in Bluetooth Wireless Receiver
  • FX (Analog Effects) & 16 Bit DSP processor
  • Direct-to-Computer Connect & Sound Record Ability
  • 7-Band EQ
  • 32-Bit Dual Engine DSP
  • 24-Bit ADC DAC Converter
  • FX Configuration Adjustment Controls
  • Rotary Adjustment Knobs & LED Indicator Lights
  • MP3 Digital Audio File Compatibility
  • USB Flash Drive Reader
  • USB Port for Desktop Connection
  • Connect & Stream Audio from External Devices
  • (2) 1/4’’ (L/R) MAIN Outputs
  • (2) XLR/14’’ Combo Audio LINE/Microphone Inputs
  • 1/4’’ Mono + Stereo Inputs
  • 1/4’’ Send + Return Inputs
  • 1/4’’ Headphone Jack
  • Stereo Level Fader/Slider
  • Output Signal Level Indication
  • BUS Audio Control, Sound Routing
  • PAD Channel Source Input Switch
  • Independent Channel Input Audio Configuration
  • Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
  • +48V Phantom Power Control
  • Power ON/OFF Switch
  • Used for Professional Studio Applications & On-Stage Performances

    What’s in the Box:
  • Bluetooth Studio Mixer
  • Power Adapter Cable, 3-Pin

    Wireless Bluetooth Connectivity:
  • Hassle-Free Audio Streaming Ability
  • Works with All of Today’s Latest Devices
  • (Smartphones, Tablets, Laptops, Computers, etc.)
  • Bluetooth Network Name: ‘KG-08A’
  • Bluetooth Version: 2.0
  • Wireless Range: 15+’ ft.

    Technical Specs:
  • Input Mixer Channels: 4-Ch. (+ FX/Headphones)
  • Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
  • Input Frequency Response: 20Hz-20kHz, +/-3dB
  • Input Distortion: 0.03%, 1kHz/150mV Input
  • Channel GAIN Adjustment: +20/+64 (-6/+38)
  • HIGH Gain: +/-15 dB, 12kHz Frequency Shelving
  • MID Gain: +/-15 dB, 2.5kHz Frequency Shelving
  • LOW Gain: +/-15 dB, 80kHz Frequency Shelving
  • HIGH/MID/LOW Adjustment: -15/+15dB
  • Stereo Output Level Meter: 12-Segment (-30, -20, -10, -7, -4, -2, 0, +2, +4, +7, +10, CLIP)
  • PAD Input Channel Adjustment: 26dB
  • Peak CLIP Level: < 3dB
  • Digital Audio File Compatibility File-Types: MP3, WAV
  • Phantom Power Voltage: +48V
  • Power Supply: 100-240V (+/-15V DC Power Adapter)
  • Dimensions (L x W x H): 13.8’’ x 12.5’’ x 3.66’’ -inches
  • Sold as: 1
  • Weight: 9.54 lbs.
